產品簡介
ModbusTCP OPC Server 320 was developed by OPCTechs Technology Corporation in June. 2005. According to the standard OPC 3.0 Specification, we developed the packaged software for our extended customers especially in the automation fields. It is suitable in the integration fields in every walk of life. Modbus protocol is one of the most popular communication protocol in the world today. As the new devices create, the modbus protocol should be embedded by the device makers. Modbus protocol let the engineers fast and easily to integrate devices to the automation software. The devices such as power meter, water leakage machine, generator, UPS … etc. They all inborn provide the Modbus communication protocol.

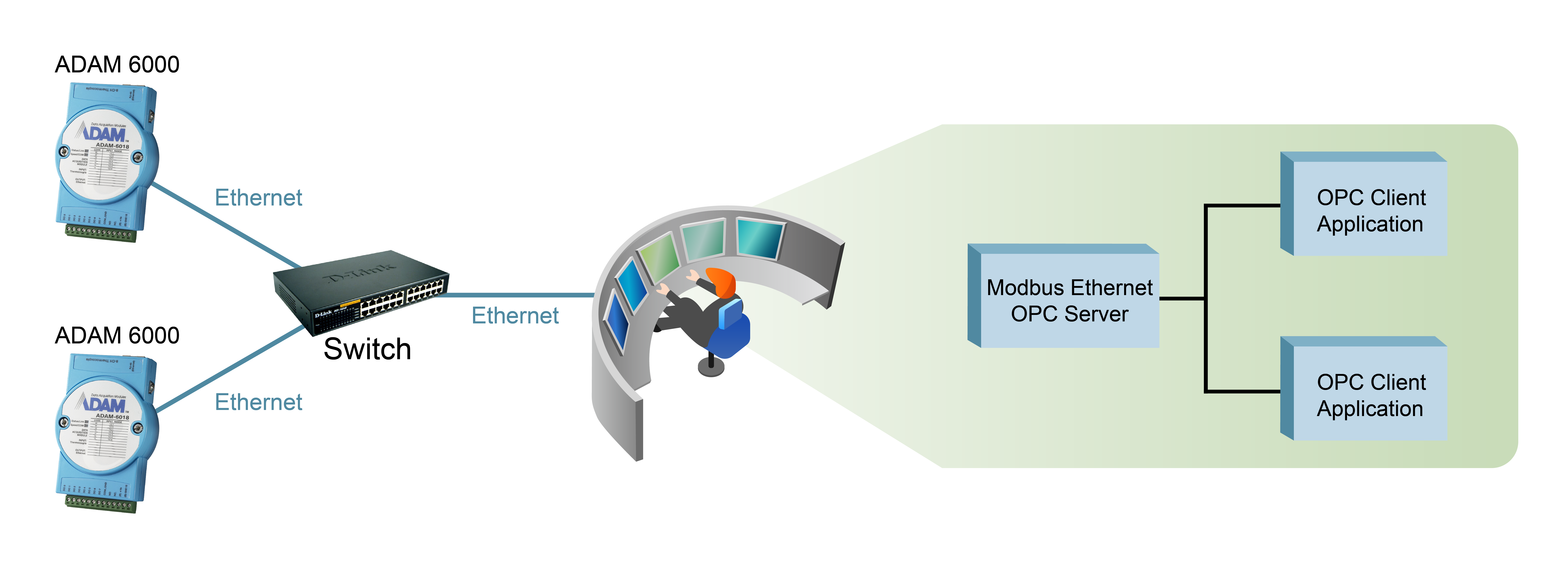

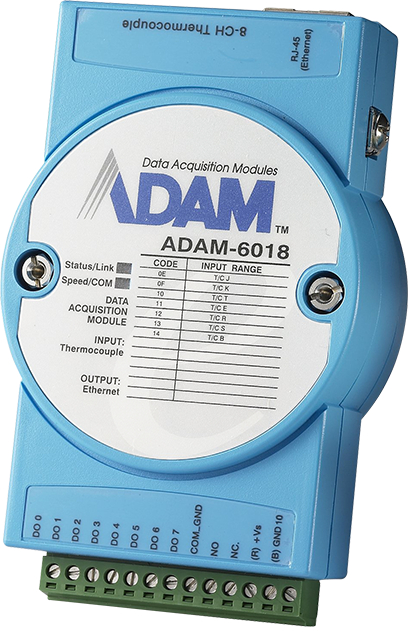

The Ethernet solution was so popular in these years. The Ethernet inborn equipment was raised and so many engineers used in the automation fields. ModbusTCP is the modbus protocol in Ethernet hardware. It’s popular and easy to integrate. The hardware such as Honeywell HC900, Advantech ADAM6000 series, Moxa Ethernet I/O are follow ModbusTCP communication protocol.
通信協定
- Key features of the OPC Server 320 include:
- Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.
- Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
- Compliant with the latest OPC XML Data Access 1.0 standard.
- OPC Data Access Server、Alarm & Event Server are integrated in one program.
- Tag multiplier allows you to create hundreds of tags in seconds.
- Tags can be grouped in logical folders for manageability.
- Value simulation for any data item in the OPC server.
- Tags support configurable range information.
- Flexible configuration for numerous tags.
- Tags have configurable alarm conditions.
- Tag values are persistent.
產品特色
系統需求
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| IBM Compatible Computer | Memory | 2 GB RAM at least |
| IBM Compatible Computer | HDD space | 10 GB disk space |
| Operating System | Windows 7 Professional 32/64-bit | |
| Operating System | Windows 8 Professional 32/64-bit | |
| Operating System | Windows 10 Professional 32/64-bit | |
| Operating System | Windows 2003 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2008 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2012 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2016 Server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
OPC 認證
Compliance Testing is a process which verifies that an OPC product implements a specification properly by using a standard software test tool developed by the OPC Foundation. This test tool, called the Compliance Test Tool or CTT, is currently available for several specifications. Vendors can download the CTT from the OPC Foundation website and run the tests at their site. The company's administrator or designated product manager for the OPC Foundation WEB site can then attach the encrypted file generated by the CTT to the appropriate OPC Foundation Product catalog item. The OPC Foundation Product Catalog will display the results to the public. OPC Users should look for OPC Server products that have passed the compliance tests for all specifications that the product supports and display the “Self Tested” logo.
Compliance Testing is only available for OPC Server products.
Modbus TCP OPC 認證
| Link Name | Version | Compliance Tool | Date Tested | Test Result |
|---|---|---|---|---|
| OPCTechs.ModbusTCP30DA | 3.20.0 | DA 2.05a (2.0.17.1146) | 2007-07-26 | Tested |
| OPCTechs.ModbusTCP30DA | 3.20.0 | DA 3.00 (1.0.13.1146) | 2007-07-26 | Tested |
