產品簡介

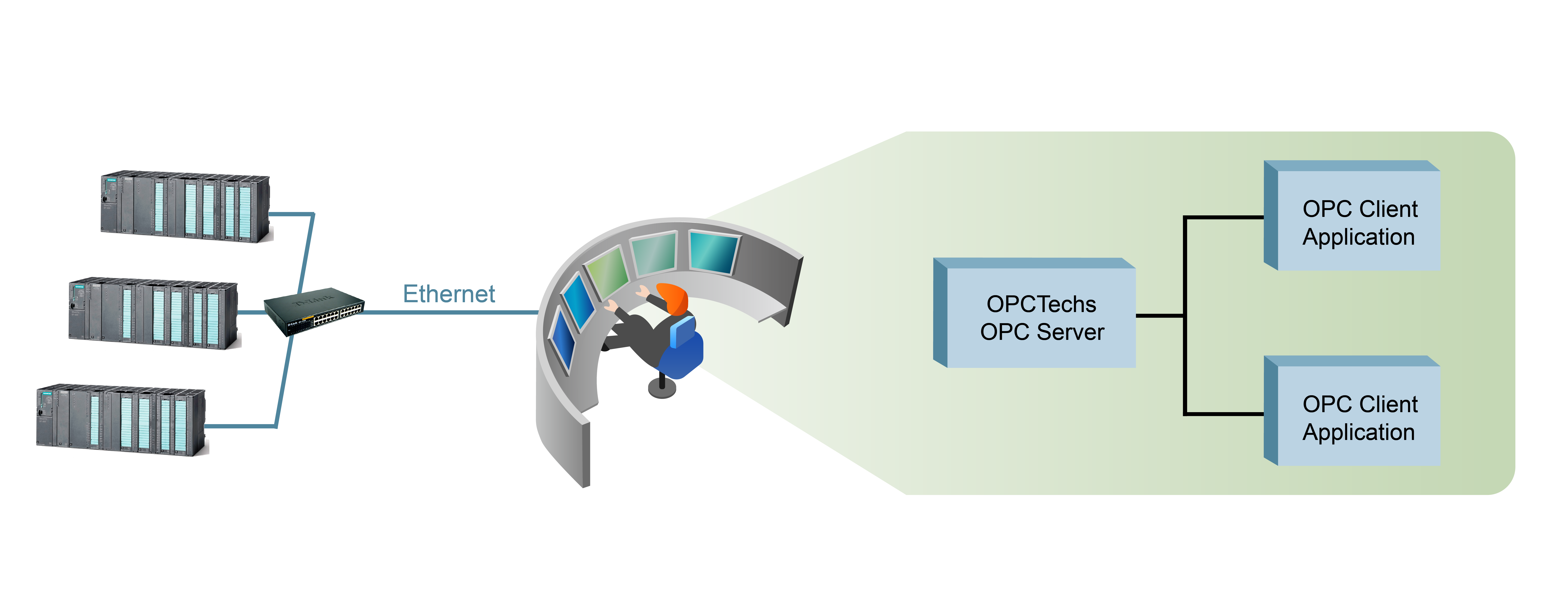

Siemens Ethernet OPC Server 320 was developed by OPCTechs Technology Corporation. According to the standard OPC 3.0 Specification, we developed the packaged software for our extended customers especially in the automation fields. It is suitable in the integration fields in every walk of life. The protocol used is S7 Messaging on Industrial Ethernet (ISO 8073 Class 0) over TCP/IP as defined in RFC1006.S7 Messaging on Industrial Ethernet (ISO 8073 Class 0) over TCP/IP as defined in RFC1006.OPCTechs Ethernet OPC server could connect with all series of Siemens PLC by Ethernet.
通信協定
- Key features of the OPC Server 320 include:
- Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.
- Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
- Compliant with the latest OPC XML Data Access 1.0 standard.
- OPC Data Access Server、Alarm & Event Server are integrated in one program.
- Tag multiplier allows you to create hundreds of tags in seconds.
- Tags can be grouped in logical folders for manageability.
- Value simulation for any data item in the OPC server.
- Tags support configurable range information.
- Flexible configuration for numerous tags.
- Tags have configurable alarm conditions.
- Tag values are persistent.
產品特色
支援硬體
| Model Name | CPU | Ethernet |
|---|---|---|
| S7-200 | CPU212 | CP- 243-1 CP- 243-1-IT |
| CPU214 | ||
| CPU215 | ||
| CPU216 | ||
| CPU221 | ||
| CPU222 | ||
| CPU222CN | ||
| CPU224 | ||
| CPU224CN | ||
| CPU224XP | ||
| CPU224XP CN | ||
| CPU226 | ||
| CPU226CN | ||

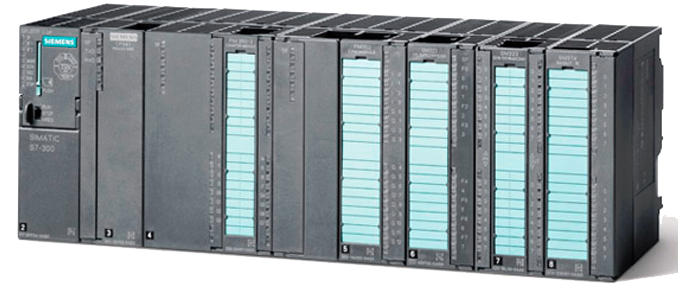

| S7-300 | CPU312 | CP- 343-1 CP- 343-1-IT CP- 343-1-Lean CP- 343-1-PN |
| CPU312C | ||
| CPU313 | ||
| CPU313C | ||
| CPU313C-2 PtP | ||
| CPU313C-2 DP | ||
| CPU314C | ||
| CPU314C-2 PtP | ||
| CPU314C-2 DP | ||
| CPU315-2 DP | ||
| CPU315-2 PN/DP | ||
| CPU315-F-2 DP | ||
| CPU315-F-2 PN/DP | ||
| CPU315-T-2 DP | ||
| CPU317-2 DP | ||
| CPU317-2 PN/DP | ||
| CPU317-F-2 DP | ||
| CPU317-F-2 PN/DP | ||
| CPU317-T-2 DP | ||
| CPU318-2 DP | ||
| CPU319-3 PN/DP | ||
| SIPLUS S7-300 | SIPLUS CPU 312C | |
| SIPLUS CPU 313C | ||
| SIPLUS CPU 313C-2 DP | ||
| SIPLUS CPU 314C | ||
| SIPLUS CPU 314C-2 DP | ||
| SIPLUS CPU 315-2DP | ||
| SIPLUS CPU 315-2PN/DP | ||
| SIPLUS CPU 315F-2DP | ||
| SIPLUS CPU 317-2PN/DP | ||
| SIPLUS CPU 317F-2DP | ||
| S7-400 | CPU 412-1 | CP- 443-1 CP- 443-1 IT |
| CPU 412-2 | ||
| CPU 414-2 | ||
| CPU 414-3 | ||
| CPU 416-2 | ||
| CPU 416-3 | ||
| CPU 417-4 | ||
| S7-400H/F/FH | CPU 414-4H | |
| CPU 417-4H | ||
| S7-1200 | CPU 1211C | Built-in 1 RJ45 |
| CPU 1212C | ||
| CPU 1214C | ||
| CPU 1215C | ||
| CPU 1217C | ||
| S7-1500 | CPU 1511-1 PN | |
| CPU 1513-1 PN | ||
| CPU 1515-2 PN | ||
| CPU 1516-3 PN/DP | ||
| CPU 1517-3 PN/DP | ||
| CPU 1518-4 PN/DP | ||
| CPU 1518-4 PN/DP ODK | ||
| CPU 1511C-1 PN | ||
| CPU 1512C-1 PN | ||
| CPU 1511F-1 PN | ||
| CPU 1513F-1 PN | ||
| CPU 1515F-2 PN | ||
| CPU 1516F-3 PN/DP | ||
| CPU 1517F-3 PN/DP | ||
| CPU 1517TF-3 PN/DP | ||
| CPU 1518F-4 PN/DP | ||
| CPU 1518F-4 PN/DP ODK | ||
| CPU 1511T-1 PN | ||
| CPU 1515T-2 PN | ||
| CPU 1517T-3 PN/DP |
系統需求
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| IBM Compatible Computer | Memory | 2 GB RAM at least |
| IBM Compatible Computer | HDD space | 10 GB disk space |
| Operating System | Windows 7 Professional 32/64-bit | |
| Operating System | Windows 8 Professional 32/64-bit | |
| Operating System | Windows 10 Professional 32/64-bit | |
| Operating System | Windows 11 Professional 32/64-bit | |
| Operating System | Windows 2003 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2008 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2012 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2016 Server 32/64-bit | |
| Operating System | Windows 2019 server 32/64-bit | |
| Operating System | Windows 2022 server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
OPC 認證
Compliance Testing is only available for OPC Server products.
Compliance Testing is a process which verifies that an OPC product implements a specification properly by using a standard software test tool developed by the OPC Foundation. This test tool, called the Compliance Test Tool or CTT, is currently available for several specifications. Vendors can download the CTT from the OPC Foundation website and run the tests at their site. The company's administrator or designated product manager for the OPC Foundation WEB site can then attach the encrypted file generated by the CTT to the appropriate OPC Foundation Product catalog item. The OPC Foundation Product Catalog will display the results to the public. OPC Users should look for OPC Server products that have passed the compliance tests for all specifications that the product supports and display the “Self Tested” logo.
Siemens S7 Ethernet OPC 認證
| Link Name | Version | Compliance Tool | Date Tested | Test Result |
|---|---|---|---|---|
| OPCTechs.SiemensNet30DA | 3.20.0 | DA 2.05a (2.0.19.1152) | 2008-04-14 | Tested |
| OPCTechs.SiemensNet30DA | 3.20.0 | DA 3.00 (1.0.15.1152) | 2008-04-14 | Tested |
