產品簡介
Mitsubishi Melsec OPC Server 320 is a software package developed by OPCTechs Technology Corp. for the Mitsubishi all series of PLC in serial communication. It is totally based on OPC 3.0 standards, and is suitable for the software integration domain. Melsec FX、Melsec A、 Melsec Q is the protocol presented by Mitsubishi Corp. OPCTechs OPC server could connect with all series of the Mitsubishi PLC in serial communication.

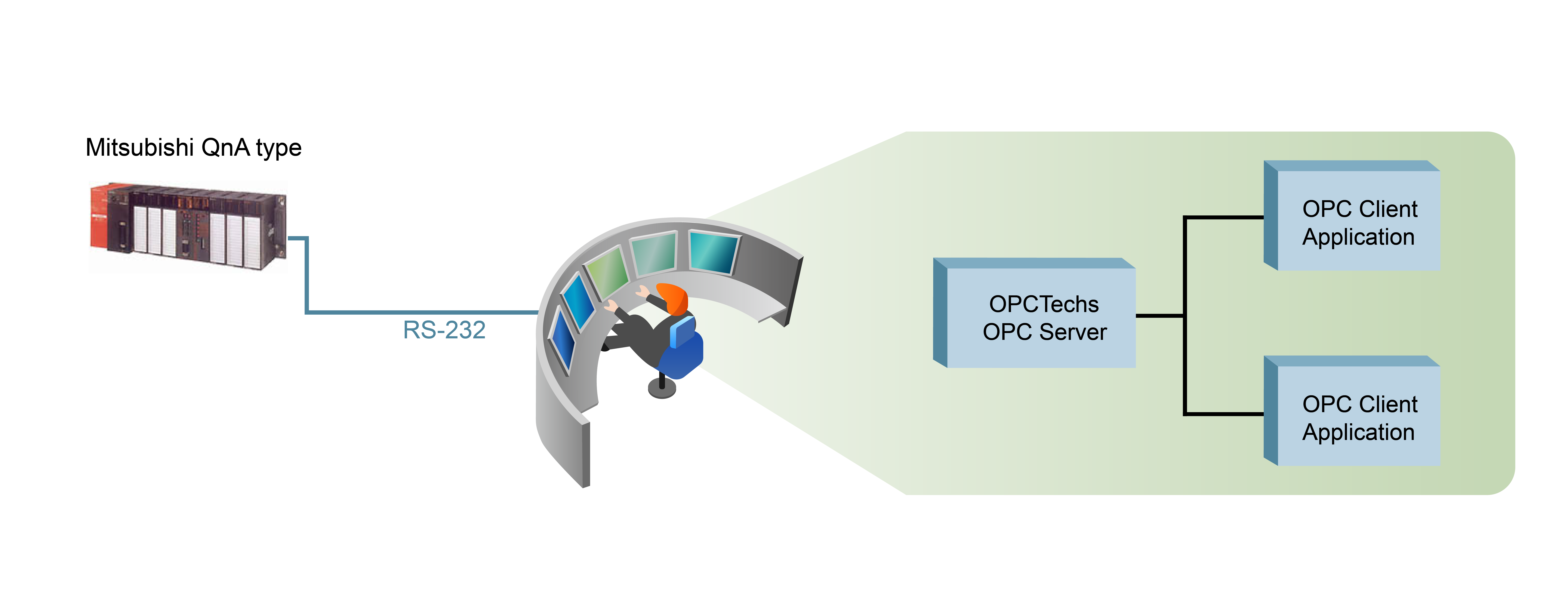

通信協定
- Key features of the OPC Server 320 include:
- Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.
- Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
- Compliant with the latest OPC XML Data Access 1.0 standard.
- OPC Data Access Server、Alarm & Event Server are integrated in one program.
- Tag multiplier allows you to create hundreds of tags in seconds.
- Tags can be grouped in logical folders for manageability.
- Value simulation for any data item in the OPC server.
- Tags support configurable range information.
- Flexible configuration for numerous tags.
- Tags have configurable alarm conditions.
- Tag values are persistent.
產品特色
支援硬體
| Model Name | CPU | Serial | |||
|---|---|---|---|---|---|
| MELSEC-QnA | Q4ACPU | Q2ASHCPU | Q3ACPU | Q2ASHCPU-S1 | A1SJ71QC24 A1SJ71QC24N A1SJ71QC24N-R2 A1SJ71QC24-R2 A1SJ71UC24-R2 A1SJ71UC24-R4 AJ71QC24 AJ71QC24N AJ71QC24N-R2 AJ71QC24N-R4 AJ71QC24-R2 AJ71QC24-R4 AJ71UC24 A1SJ71UC24-R2 A1SJ71UC24-R4 QJ71C24N QJ71C24N-R2 QJ71C24N-R4 |
| Q2ACPU-S1 | Q2ACPU | Q2ACPU | Q2ACPU-S1 | ||
| Q2ASHCPU-S1 | Q3ACPU | Q2ASHCPU | Q4ACPU | ||
| Q2ASCPU-S1 | Q4ARCPU | Q2ASCPU | Q02CPU-A | ||
| Q4ARCPU | Q02HCPU-A | Q2ASCPU | Q06HCPU-A | ||
| Q00CPU | Q04UDEHCPU | Q13UDHCPU | Q00JCPU | ||
| Q04UDHCPU | Q13UDVCPU | Q00UCPU | Q04UDVCPU | ||
| Q172DCPU | Q00UJCPU | Q06HCPU | Q172HCPU | ||
| Q01CPU | Q06UDEHCPU | Q173DCPU | Q01UCPU | ||
| Q06UDHCPU | Q20UDEHCPU | Q02CPU | Q06UDVCPU | ||
| Q20UDHCPU | Q02HCPU | Q10UDEHCPU | Q25HCPU | ||
| Q02UCPU | Q10UDHCPU | Q26UDEHCPU | Q03UDCPU | ||
| Q12HCPU | Q26UDHCPU | Q03UDECPU | Q13UDEHCPU | ||
| Q26UDVCPU | Q03UDVCPU | ||||
系統需求
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| IBM Compatible Computer | Memory | 2 GB RAM at least |
| IBM Compatible Computer | HDD space | 10 GB disk space |
| Operating System | Windows 7 Professional 32/64-bit | |
| Operating System | Windows 8 Professional 32/64-bit | |
| Operating System | Windows 10 Professional 32/64-bit | |
| Operating System | Windows 2003 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2008 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2012 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2016 Server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
OPC 認證
Compliance Testing is only available for OPC Server products.
Compliance Testing is a process which verifies that an OPC product implements a specification properly by using a standard software test tool developed by the OPC Foundation. This test tool, called the Compliance Test Tool or CTT, is currently available for several specifications. Vendors can download the CTT from the OPC Foundation website and run the tests at their site. The company's administrator or designated product manager for the OPC Foundation WEB site can then attach the encrypted file generated by the CTT to the appropriate OPC Foundation Product catalog item. The OPC Foundation Product Catalog will display the results to the public. OPC Users should look for OPC Server products that have passed the compliance tests for all specifications that the product supports and display the “Self Tested” logo.
Mitsubishi Serial OPC 認證
| Link Name | Version | Compliance Tool | Date Tested | Test Result |
|---|---|---|---|---|
| OPCTechs.Melsec30DA | 3.20.0 | DA 2.05a (2.0.17.1146) | 2007-07-25 | Tested |
| OPCTechs.Melsec30DA | 3.20.0 | DA 3.00 (1.0.13.1146) | 2007-07-25 | Tested |
