產品簡介

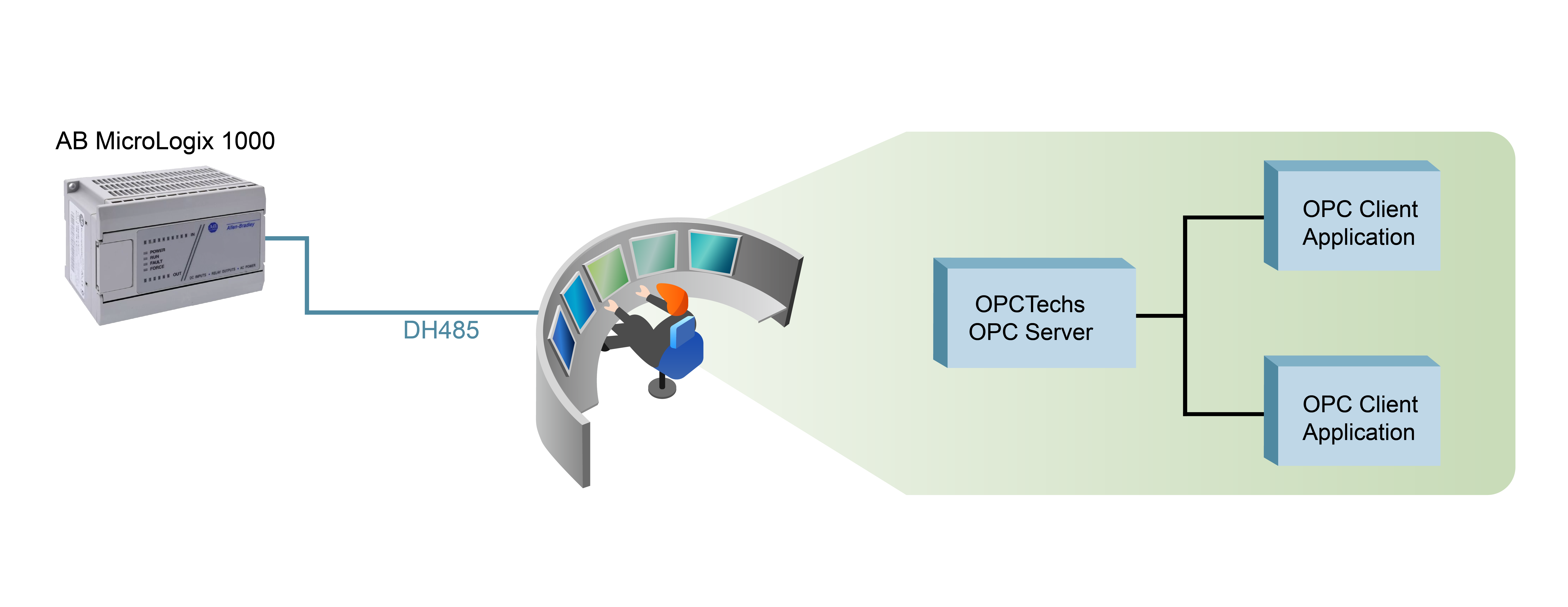

Allen Bradley DH485 OPC Server 320 followed the standard OPC 3.0 Specification. It is suitable in the integration fields in every walk of life. DH485 protocol is a standard communication protocol working on AB PLCs. OPCTechs DF1 OPC server could connect with all series of Micrologix, SLC PLC by serial communication. But you have to buy the AB DH485 module for communication.
通信協定
AB DH485 Protocol
- Key features of the OPC Server 320 include:
- Compliant with the latest OPC Data Access 1.0, 2.04, 2.05 and 3.0 standards.
- Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
- Compliant with the latest OPC XML Data Access 1.0 standard.
- OPC Data Access Server、Alarm & Event Server are integrated in one program.
- Tag multiplier allows you to create hundreds of tags in seconds.
- Tags can be grouped in logical folders for manageability.
- Value simulation for any data item in the OPC server.
- Tags support configurable range information.
- Flexible configuration for numerous tags.
- Tags have configurable alarm conditions.
- Tag values are persistent.
產品特色
支援硬體
| Model Name | CPU | Serial |
|---|---|---|
| SLC500 | SLC 5/01,SLC 5/02,SLC 5/03,SLC 5/04,SLC 5/05 | support Built-in DH485 port, 1747-PIC Link coupler |
| PLC5 | PLC5/10,PLC-5/11,PLC5/15,PLC5/20,PLC5/20E,PLC5/25,PLC5/30, PLC5/40,PLC5/40E,PLC5/40L,PLC5/60,PLC-5/60L,PLC5/80,PLC5/80E | support Built-in DH485 port,1785-KA /1785-KE |

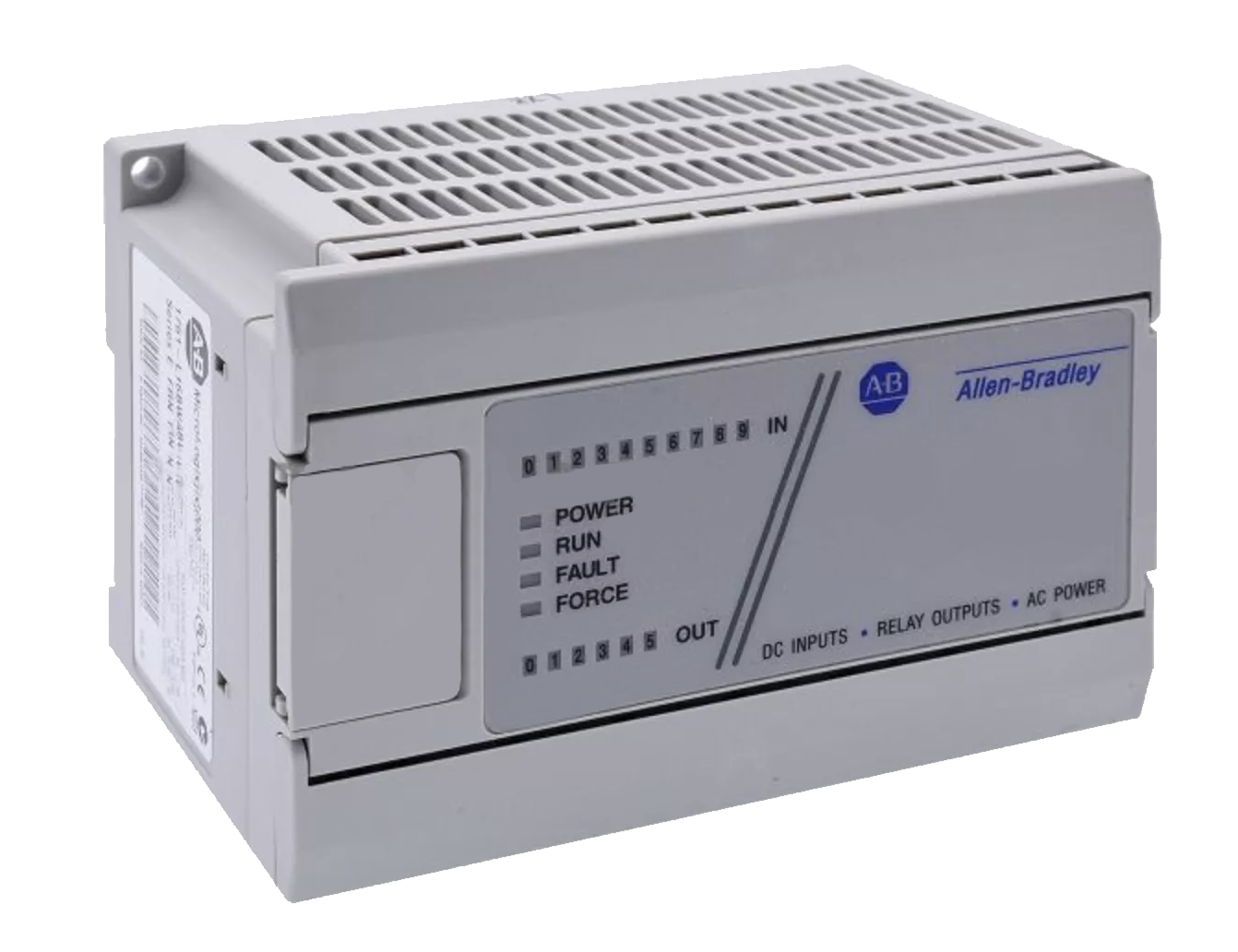

| MicroLogix | MicroLogix 1000/1100/1200/1500 | support Built-in DH485 port, 1761-NET-AIC |
系統需求
| Required Hardware & Software | Item | Specification |
|---|---|---|
| IBM Compatible Computer | CPU | Intel® Pentium® 4or higher |
| IBM Compatible Computer | Memory | 2 GB RAM at least |
| IBM Compatible Computer | HDD space | 10 GB disk space |
| Operating System | Windows 7 Professional 32/64-bit | |
| Operating System | Windows 8 Professional 32/64-bit | |
| Operating System | Windows 10 Professional 32/64-bit | |
| Operating System | Windows 11 Professional 32/64-bit | |
| Operating System | Windows 2003 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2008 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2012 Server 32/64-bit | With Service Pack 1 |
| Operating System | Windows 2016 Server 32/64-bit | |
| Operating System | Windows 2019 server 32/64-bit | |
| Operating System | Windows 2022 server 32/64-bit |
Windows CE
| Required Hardware & Software | Item | Specification |
|---|---|---|
| Windows CE | CPU | ARM, XScale, X86 CPU |
| Operating System | Windows CE | Windows CE 5.0, 6.0 |
